Mine ventilation systems are engineered arrangements used to circulate fresh air through underground mining areas and remove contaminated or unwanted air.
Proper airflow helps maintain suitable environmental conditions for workers and supports the operation of mining equipment.
These systems use fans, ducts, regulators, airways, monitoring devices, and other components to direct and control air throughout a mine. The configuration depends on mine depth, layout, production activities, geological conditions, and ventilation requirements.
What Are Mine Ventilation Systems?
Mine ventilation systems are engineered arrangements that move air through mining areas. In underground mines, air must travel through a planned network of intake and return airways to reach working areas and then carry contaminated air away.
A ventilation system generally performs several functions:
- Supplies fresh air to working areas
- Removes contaminated or stale air
- Controls airborne dust and gases
- Helps manage underground heat and humidity
- Supports suitable environmental conditions
- Provides airflow for areas where mining equipment operates
The system must be designed around the mine layout because excavation activities continuously change the available airways.
How Mine Ventilation Systems Work
1. Fresh Air Intake
Fresh air enters the mine through designated intake openings. Main ventilation fans or other airflow mechanisms establish the pressure difference needed to move air through the underground network.
2. Air Distribution
Air travels through shafts, tunnels, raises, drifts, ducts, and other designated pathways. Regulators and ventilation controls help direct airflow toward active mining areas.
3. Working Area Ventilation
Fresh air reaches areas where drilling, blasting, loading, hauling, crushing, or other mining activities take place. Local ventilation equipment may be required when a working area is distant from the main ventilation network.
4. Contaminated Air Removal
After passing through working areas, air can contain dust, gases, heat, and emissions from equipment. The return-air network carries this air toward designated exhaust routes.
5. Exhaust
Return air eventually leaves the mine through return airways, shafts, or exhaust openings. Main fans can maintain the required airflow and pressure conditions across the ventilation network.
Types of Mine Ventilation Systems
Natural Ventilation
Natural ventilation uses differences in air pressure, temperature, and elevation to create airflow. It may occur naturally within a mine but generally provides less control than mechanically assisted systems.
Mechanical Ventilation

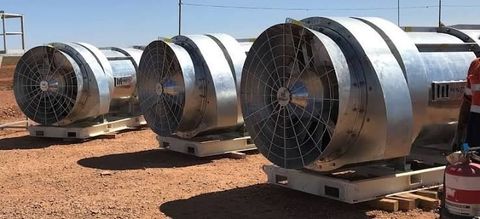

Mechanical ventilation uses fans to actively move air through the mine. Fans may be installed at shafts, portals, airways, or local working areas.
Exhaust Ventilation
In an exhaust arrangement, fans remove air from the mine or selected sections. This creates pressure conditions that draw fresh air through designated intake pathways.
Forcing Ventilation
Forcing systems use fans to push fresh air toward working areas. Flexible or rigid ducts can transport air to locations that are not adequately reached by the main ventilation network.
Auxiliary Ventilation
Auxiliary ventilation is used to ventilate specific areas such as development headings, tunnels, or other isolated work zones. Local fans and ducting help extend airflow beyond the main ventilation circuit.
Combined Ventilation
Some mines use combinations of forcing and exhaust arrangements. This approach allows airflow to be adapted to different sections and operational conditions.
Main Components of Mine Ventilation Systems
| Component | Main Function |
|---|---|
| Main ventilation fans | Move large volumes of air through the mine |
| Auxiliary fans | Provide localized airflow |
| Ventilation ducts | Transport air to specific areas |
| Shafts | Provide major intake or return pathways |
| Airways | Direct airflow through underground workings |
| Regulators | Control the quantity and direction of airflow |
| Stoppings | Separate intake and return air routes |
| Air doors | Control movement between ventilation areas |
| Air crossings | Allow separate air streams to cross |
| Monitoring sensors | Measure ventilation conditions |
| Control systems | Monitor and adjust ventilation parameters |
Important Ventilation Parameters
Airflow Quantity
Airflow quantity describes the volume of air moving through a particular location over a given period. Adequate airflow is necessary to maintain the intended ventilation conditions.
Air Velocity
Air velocity represents how quickly air moves through an airway or working area. Excessively low or high velocity can affect ventilation performance and environmental conditions.
Air Pressure
Pressure differences drive airflow through interconnected mine passages. Fans, regulators, airways, and ventilation structures influence pressure distribution.
Temperature and Humidity
Underground mining areas can experience elevated temperatures and humidity, particularly at greater depths. Ventilation helps distribute heat and improve environmental conditions.
Gas Concentrations
Mining operations can generate or encounter gases such as methane, carbon monoxide, carbon dioxide, and other contaminants. Continuous or periodic monitoring helps identify changes in atmospheric conditions.
Ventilation Monitoring Systems
Modern mines can use sensors and digital monitoring platforms to track ventilation conditions. Typical measurements include airflow, pressure, temperature, humidity, and gas concentrations.
Monitoring systems can provide information from multiple locations and help ventilation personnel identify changes in airflow patterns. Automated controls may also adjust selected fans or ventilation devices based on operating conditions.
Data logging can support ventilation analysis by providing historical information about environmental conditions and equipment operation.
Applications of Mine Ventilation Systems
Coal Mining
Ventilation is particularly important in underground coal mining, where methane, coal dust, heat, and equipment emissions can affect underground atmospheric conditions.
Metal Mining
Metal mines may have complex networks containing shafts, ramps, stopes, raises, and development headings. Ventilation systems help move air through these interconnected areas.
Mineral Mining
Underground mineral extraction can involve drilling, blasting, crushing, and hauling activities. Ventilation helps control airborne contaminants and environmental conditions associated with these operations.
Tunnel and Underground Construction
Similar ventilation principles are used in tunnels and underground construction projects where excavation equipment and workers operate in enclosed spaces.
Factors Affecting Ventilation System Design
Several factors influence the design and configuration of a mine ventilation system:
- Mine depth
- Underground layout
- Number of active working areas
- Production activities
- Equipment emissions
- Geological conditions
- Heat generation
- Airway dimensions
- Required airflow
- Gas and dust conditions
- Ventilation regulations
- Future mine development
Because mine layouts change as excavation progresses, ventilation planning often needs to be updated as new areas are developed.
Maintenance of Mine Ventilation Equipment
Regular inspection is important for maintaining ventilation performance. Fans should be checked for vibration, unusual noise, mechanical wear, and changes in operating conditions.
Ducts should be inspected for tears, blockages, leaks, and improper connections. Ventilation doors, stoppings, regulators, and other structures should also be examined to identify damage that could alter airflow.
Monitoring instruments require calibration and inspection so that airflow, pressure, temperature, and gas measurements remain reliable.
Safety Considerations
Mine ventilation systems are an important part of underground environmental and hazard-control planning. Ventilation arrangements should comply with applicable mining regulations and site-specific risk controls.
Emergency ventilation plans can address events such as fires, equipment failures, unexpected gas conditions, or other incidents that may disrupt normal airflow.
Personnel responsible for ventilation should have appropriate training and access to current ventilation plans, monitoring information, and emergency procedures.
FAQs
What are mine ventilation systems used for?
Mine ventilation systems circulate air through mining areas, supply fresh air, remove contaminated air, control airborne pollutants, and help manage underground heat and humidity.
What are the main types of mine ventilation?
Common arrangements include natural ventilation, mechanical ventilation, forcing ventilation, exhaust ventilation, auxiliary ventilation, and combined ventilation systems.
What equipment is used in mine ventilation?
Typical equipment includes main fans, auxiliary fans, ventilation ducts, regulators, air doors, stoppings, shafts, airways, sensors, and ventilation control systems.
Why are mine ventilation fans important?
Ventilation fans generate the pressure and airflow required to move air through underground mine networks. Their location and configuration depend on the mine's ventilation design.
How is mine ventilation monitored?
Ventilation can be monitored using airflow meters, pressure sensors, gas detectors, temperature sensors, humidity sensors, and centralized monitoring platforms.
Conclusion
Mine ventilation systems provide controlled air movement throughout underground and enclosed mining environments. They combine fans, airways, ducts, regulators, ventilation structures, monitoring equipment, and control systems to manage airflow and environmental conditions.
The appropriate system depends on mine geometry, depth, production activities, equipment, geological conditions, and applicable safety requirements. Continuous monitoring, planned maintenance, and regular ventilation assessments help maintain the intended airflow network as mining operations develop.
