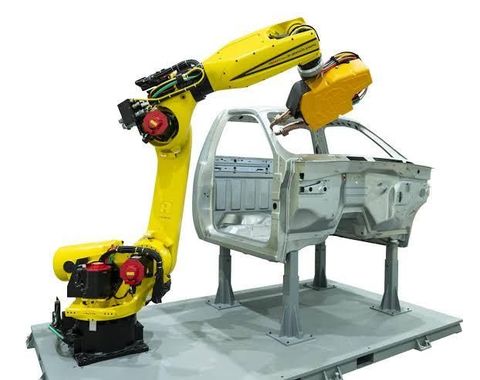

An automatic welding robot is a programmable machine designed to join metal components by following a defined welding path.
It uses robotic arms, welding tools, control systems, and sensors to perform welding operations with limited manual intervention. These machines are used in manufacturing environments where repeated joints, consistent movement, and controlled welding conditions are important.
Welding has long been used in industries such as automotive manufacturing, construction, shipbuilding, heavy equipment production, and metal fabrication. Traditional welding methods often depend on an operator controlling the welding tool manually. As manufacturing processes developed, automated machinery made it possible to repeat welding movements according to programmed instructions.
Industrial welding robots extend this approach by combining mechanical movement with electronic controls and welding technology. A robotic welding machine can follow specified positions, angles, and movement speeds while maintaining a defined relationship between the welding torch and the workpiece. The actual result depends on material properties, equipment configuration, joint preparation, and welding parameters.
How Robotic Welding Systems Work
Robotic welding systems generally include a robotic arm, welding power source, torch, controller, workholding equipment, and safety devices. Depending on the application, the system may also include cameras, sensors, positioners, and software for programming welding paths.
The process usually begins with preparing the metal components and positioning them in a fixture. The robot follows a programmed path while the welding equipment creates a joint. After the operation, the completed weld may undergo visual inspection or other quality checks.
Common Types of Automated Welding Equipment
Automated welding equipment can use different methods depending on the material, joint design, and production requirements.
Arc welding: Uses an electric arc to generate heat and join metal parts. It is widely used in industrial fabrication.
Resistance spot welding: Joins overlapping metal sheets by applying pressure and electrical current. It is common in vehicle body production.
Laser welding: Uses a concentrated laser beam to create a weld. It is used for applications requiring controlled heat input and accurate positioning.
TIG welding: Uses a non-consumable tungsten electrode and is suitable for certain applications requiring careful control of the weld.
MIG welding: Uses a continuously fed wire electrode and shielding gas in many metal fabrication applications.
Not every robotic welding machine supports every welding method. Equipment selection depends on the manufacturing task, material thickness, joint accessibility, and required weld characteristics.
Importance
Automatic welding robots play an important role in modern manufacturing because many products contain repeated metal joints that must meet defined specifications. Automating these tasks can help maintain consistent movements and reduce variations associated with repetitive manual operations.
These systems affect manufacturers, equipment operators, maintenance teams, quality inspectors, and people who use products made from welded components. Applications range from vehicle frames and industrial machinery to metal furniture, storage structures, and fabricated assemblies.
Improving Consistency and Production Control
Manual welding requires coordination, concentration, and control over torch movement. In repetitive manufacturing, robotic systems can reproduce programmed movements across multiple components, provided that parts are positioned correctly and operating conditions remain controlled.
Industrial welding robots can also work within production cells that coordinate material movement, component positioning, and inspection. This helps manufacturers organize production sequences and monitor the progress of welding operations.
However, repeatable movement does not automatically mean that every weld will be defect-free. Incorrect programming, contaminated materials, poor joint alignment, unsuitable welding parameters, or worn equipment can still affect weld quality.
Supporting Workplace Safety
Welding involves hazards such as intense light, heat, fumes, electrical energy, and hot metal surfaces. Robotic systems can reduce the need for an operator to remain directly beside the welding point during certain operations.
Nevertheless, automated welding equipment introduces other risks, including unexpected robotic movement, pinch points, and equipment faults. Safety enclosures, interlocks, emergency stops, ventilation, maintenance procedures, and appropriate training remain important parts of the working environment.
Applications Across Industries
Robotic welding is used in several manufacturing sectors.
Automotive production: Joining vehicle frames, body panels, and structural components.
Heavy equipment: Welding frames, brackets, and machine assemblies.
Metal fabrication: Producing enclosures, supports, racks, and fabricated structures.
Agricultural machinery: Joining metal components used in equipment frames and attachments.
Pipe and vessel manufacturing: Performing selected welds on compatible components and production setups.
The level of automation varies by industry. Large production facilities may use integrated robotic cells, while smaller workshops may automate specific repetitive welding tasks.
Recent Updates
Developments in robotic welding increasingly focus on sensor integration, easier programming, production monitoring, and flexible manufacturing. These developments are helping manufacturers address tasks that involve changing component designs, tighter production tolerances, or smaller production batches.
Sensor-Based Welding and Adaptive Control
Traditional robotic welding often follows a predefined path. Modern systems may use cameras, laser scanners, touch sensing, or other measurement technologies to identify component positions and detect variations in joint location.
When supported by the system design, this information can help adjust the welding path or identify a condition requiring operator attention. Adaptive welding does not eliminate the need for correct component preparation, appropriate programming, or inspection.
Easier Programming and Digital Simulation
Programming tools increasingly allow users to define robot movements through graphical interfaces, offline programming software, or guided movement methods. Offline programming enables engineers to prepare and evaluate robotic paths in a simulated environment before applying them to physical equipment.
Simulation can help identify reach limitations, possible collisions, and inefficient movements. However, the simulated result must still be checked against actual equipment, workpiece dimensions, and production conditions.
AI and Connected Manufacturing
Artificial intelligence and connected monitoring systems are being explored for weld inspection, process analysis, and the identification of unusual operating patterns. These tools may help interpret camera images, monitor equipment conditions, or highlight potential inconsistencies.
Their effectiveness depends on data quality, system integration, and the type of welding task. Automated inspection results may require confirmation through established quality procedures, particularly when a joint has important structural or safety functions.
The table below summarizes common differences between conventional and modern robotic welding approaches.
| Feature | Conventional Robotic Welding | Sensor-Integrated Robotic Welding |
|---|---|---|
| Path control | Predetermined program | Program with sensor-based adjustments |
| Component positioning | Often relies on fixtures | May include position detection |
| Process monitoring | Basic operating information | Additional sensor and process data |
| Programming | Manually defined paths | May include simulation and guided tools |
| Quality checks | Separate inspection methods | May include integrated monitoring |
| Human involvement | Setup, supervision, and inspection | Setup, supervision, validation, and inspection |
Tools and Resources
Several tools help engineers, operators, and manufacturers plan, program, monitor, and evaluate robotic welding operations. The appropriate resources depend on the equipment, welding method, and complexity of the task.
Robot Programming and Simulation Software
Robot programming software defines movement paths, tool positions, and operating sequences. Simulation platforms allow users to evaluate the reach of the robotic arm, estimate cycle sequences, and check for possible collisions before production begins.
Manufacturer documentation and training materials explain controller functions, programming methods, equipment limitations, and maintenance requirements. These resources are particularly useful when learning how a specific robotic welding machine operates.
Welding Process and Quality Resources
Welding procedure documents record important process details, such as the material type, joint preparation, welding method, and relevant operating parameters. Inspection checklists can help ensure that components and welds are examined consistently.
Useful resources include:
Welding procedure specifications and associated qualification records.
Weld inspection checklists and defect reference guides.
Robot simulation and offline programming tools.
Equipment maintenance and calibration records.
Technical guidance from recognized welding organizations, such as the American Welding Society and the International Organization for Standardization.
Production Monitoring Tools
Monitoring platforms can collect information about robot activity, equipment status, cycle completion, and selected welding parameters. Such information may help maintenance teams investigate interruptions and identify recurring production issues.
Data should be interpreted in context. A monitoring alert indicates a condition that may need attention, but it does not necessarily confirm a weld defect or establish the cause of a problem.
FAQs
What is an automatic welding robot?
An automatic welding robot is a programmable robotic machine that performs welding movements according to defined instructions. It typically combines a robotic arm, welding equipment, a controller, and safety systems.
How do industrial welding robots improve manufacturing consistency?
Industrial welding robots repeat programmed movements and welding sequences. Consistency depends on correct programming, component positioning, material preparation, equipment condition, and suitable welding parameters.
What is the difference between robotic welding systems and manual welding?
Robotic welding systems use programmed equipment to control torch movement and other process actions. Manual welding depends more directly on an operator's movements and adjustments. Both methods require suitable procedures and quality inspection.
What industries use a robotic welding machine?
Robotic welding machines are used in automotive manufacturing, heavy equipment production, metal fabrication, agricultural machinery, and selected pipe and vessel applications. The specific uses depend on component design and production requirements.
What safety measures are needed for automated welding equipment?
Common measures include protective enclosures, safety interlocks, emergency stops, ventilation, electrical safeguards, and appropriate training. Risk assessments and maintenance procedures are also important for preventing injuries during operation and servicing.
Conclusion
Automatic welding robots combine programmable movement, welding technology, and control systems to perform repeated metal-joining tasks. Their applications span automotive production, metal fabrication, heavy equipment, and other manufacturing environments. Advances in sensors, simulation, and connected monitoring are expanding how robotic welding systems can be programmed and supervised. Equipment configuration, safe operation, proper material preparation, and quality inspection remain essential to achieving suitable welding results.
