Industrial automation panels are electrical enclosures that bring together control, switching, protection, monitoring, and communication components.
Used to operate industrial machinery and processes. An industrial automation panel provides a central location where electrical and control functions can be organized and managed. These panels are used across manufacturing plants, processing facilities, utilities, warehouses, and other industrial environments.
The development of industrial automation panels is closely connected with the growth of industrial electrical systems and programmable control technology. Earlier control arrangements often depended heavily on individual switches, relays, timers, and manual adjustments. As production processes became more complex, programmable devices and digital monitoring technologies became increasingly important.

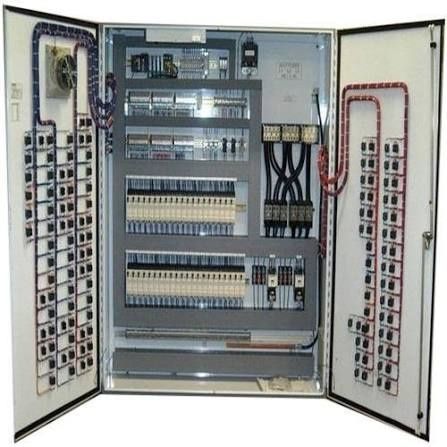

Modern industrial control panels can contain programmable logic controllers, power supplies, circuit protection devices, relays, contactors, terminal blocks, communication modules, displays, and other components. Together, these elements allow equipment to respond to programmed instructions and operating conditions.
How Automation Panels Function
An automation panel receives information from field devices such as sensors, switches, meters, and transmitters. A controller processes this information according to programmed logic and then sends instructions to equipment such as motors, valves, pumps, conveyors, and actuators.
PLC control panels are a common example. A programmable logic controller receives input signals, processes them, and controls connected outputs. This arrangement supports repeatable machine sequences and can also allow operators to observe system conditions through a human-machine interface.
Industrial control systems may also communicate with supervisory platforms. SCADA control systems, for example, can collect operating information from multiple devices and present it through centralized monitoring software.
Main Components
The exact configuration varies according to the application, but many automation control panels contain several common elements:
- Programmable logic controller for processing control instructions
- Power supply for providing appropriate electrical power to control components
- Circuit breakers and protective devices for electrical protection
- Relays and contactors for switching electrical loads
- Terminal blocks for organized field wiring
- Human-machine interface for operator interaction
- Communication modules for connecting control equipment
- Sensors and input devices for collecting operating information
- Variable frequency drives for controlling motor speed where required
- Enclosures for protecting internal components from the surrounding environment
Importance
Supporting Industrial Operations
Industrial automation systems help coordinate repeated sequences and machine functions with programmed control logic. This can reduce dependence on continuous manual intervention for routine operations while allowing personnel to monitor equipment and respond to unusual conditions.
Industrial electrical control panels also provide an organized arrangement for electrical and control components. Proper organization can make wiring easier to understand and can support inspection, testing, maintenance, and troubleshooting activities.
Automation is relevant to many sectors, including food processing, chemical production, water treatment, packaging, automotive manufacturing, pharmaceuticals, energy, and material handling. Each sector can use different combinations of controllers, sensors, drives, and monitoring systems.
Improving Process Visibility
Process control panels can connect field instruments with controllers and operator interfaces. This allows information such as temperature, pressure, flow, level, speed, and equipment status to be displayed or recorded.
Industrial process control systems are particularly useful where operating conditions must be monitored continuously. For example, a water treatment facility may use sensors to measure tank levels and flow conditions while controllers coordinate pumps and valves according to programmed sequences.
Connecting Equipment and Data
Modern factory automation equipment increasingly relies on communication networks. Controllers, drives, sensors, HMIs, and supervisory software can exchange information through industrial communication protocols.
This connectivity supports functions such as equipment status monitoring, production data collection, alarm management, and system diagnostics. It also provides a foundation for automated manufacturing control systems in facilities where several machines and production stages must operate together.
Typical Panel Functions
| Function | Common Panel Components | General Purpose |
|---|---|---|
| Control | PLC, relays, controllers | Execute programmed operations |
| Protection | Breakers, fuses, overload devices | Protect electrical circuits |
| Monitoring | HMI, meters, indicators | Display operating information |
| Switching | Contactors, relays | Control electrical loads |
| Communication | Network modules, gateways | Exchange system information |
| Motor control | Drives, starters | Manage motor operation |
| Wiring | Terminal blocks, connectors | Organize field connections |
Recent Updates
Greater Use of Connected Control
Recent developments from 2024 through 2026 have continued to emphasize connected automation, data visibility, and flexible control architectures. Industrial automation control systems increasingly connect controllers with monitoring platforms, industrial networks, and data-management tools.
This development is associated with the broader movement toward smart factory automation systems. Instead of treating each machine as an isolated unit, facilities can connect multiple production assets so that operating information can be viewed across different stages.
More Flexible PLC Architectures
PLC automation systems continue to evolve toward greater communication capability and modular design. Modern PLC-based architectures can incorporate remote input and output devices, networked drives, distributed control components, and industrial communication interfaces.
Programmable logic controller panels may therefore serve as part of a wider control architecture rather than functioning as an isolated control cabinet. Modular configurations can also allow control systems to accommodate changing equipment layouts and process requirements.
Integration With SCADA and Data Platforms
SCADA control systems continue to play an important role in centralized monitoring. Information collected from controllers and field devices can be presented through dashboards, alarm screens, trends, and historical records.
Integration with industrial data platforms is also becoming more common. This can connect plant-floor information with higher-level systems used for production monitoring, analysis, planning, and operational reporting.
Increasing Attention to Cybersecurity
Greater connectivity also introduces additional cybersecurity considerations. Industrial networks may contain controllers, computers, communication devices, and remote-access technologies that need appropriate protection.
Current industrial control practices increasingly consider network segmentation, access management, software updates, backup procedures, and monitoring as part of overall system planning. Cybersecurity requirements vary according to the equipment, network architecture, industry, and applicable regulations.
More Advanced Panel Design
Advanced industrial control panels may incorporate compact components, network interfaces, digital displays, remote monitoring capabilities, and improved wiring organization. Design approaches can also emphasize easier diagnostics and clearer identification of components.
Advanced industrial automation panel systems can combine these capabilities with sensors, drives, controllers, and supervisory software. The objective is generally to coordinate equipment functions while maintaining visibility into operating conditions.
Tools and Resources
Design and Engineering Tools
Several categories of tools can help people understand or develop automation panel systems:
- PLC programming environments for creating and testing control logic
- Electrical schematic software for documenting circuits and connections
- Panel layout tools for arranging components inside enclosures
- HMI development platforms for creating operator displays
- SCADA platforms for supervisory monitoring and data collection
- Electrical calculation tools for checking circuit and load requirements
- Industrial communication diagnostic tools for examining network connections
- Manufacturer documentation for component specifications and wiring information
Electrical drawings are particularly useful because they provide a visual representation of panel connections. Common documentation can include power diagrams, control schematics, terminal schedules, network layouts, and panel arrangement drawings.
Training materials from recognized automation technology organizations, electrical standards bodies, and equipment manufacturers can also help readers understand terminology and system architecture. Applicable electrical and machinery standards should be reviewed according to the region and type of installation.
FAQs
What are industrial automation panels used for?
Industrial automation panels are used to organize and control electrical and automation components that operate machinery and industrial processes. They can coordinate inputs, outputs, motor controls, protection devices, communication equipment, and operator interfaces.
What is the difference between PLC control panels and process control panels?
PLC control panels generally use programmable logic controllers to execute programmed sequences and machine-control functions. Process control panels are commonly associated with continuous or batch processes involving variables such as pressure, temperature, flow, and level. The two approaches can also be combined within one industrial control system.
How do industrial control panels support factory automation?
Industrial control panels connect controllers, sensors, switching equipment, drives, and communication devices. Within factory automation equipment, these components can coordinate machine sequences and exchange operating information with other industrial systems.
What role do SCADA control systems play?
SCADA control systems provide supervisory monitoring and data collection for industrial equipment and processes. They can display system conditions, alarms, trends, and selected historical information while controllers continue to perform real-time control functions.
What are smart factory automation systems?
Smart factory automation systems combine automation equipment, industrial networks, sensors, controllers, software, and data technologies. They are designed to improve visibility and coordination across connected production processes.
Conclusion
Industrial automation panels provide an organized foundation for controlling, protecting, monitoring, and communicating with industrial equipment. Their components can include PLCs, protection devices, relays, drives, communication modules, and operator interfaces. Recent developments have emphasized connected architectures, data visibility, flexible PLC systems, SCADA integration, and cybersecurity considerations. Understanding these elements provides useful context for how modern industrial control systems operate across different applications.
