Air springs are flexible pneumatic components that use compressed air to support loads, absorb movement, and reduce vibration.
They are commonly associated with vehicle suspension, but they are also used in industrial equipment, machinery, isolation platforms, and material-handling systems. Industrial air springs can provide controlled movement between a supported load and its mounting structure.
An air spring generally consists of a flexible rubber-and-fabric bellows, end plates, and an internal air chamber. When compressed air enters the chamber, the air spring expands and produces a supporting force. Changing the internal air pressure can change the load capacity and operating height within the limits of the component design.
Air spring technology has developed from pneumatic suspension applications into a wider range of industrial uses. Today, air spring suspension systems, air spring actuators, and pneumatic isolation equipment can be found in manufacturing environments, transportation equipment, testing systems, and machinery that requires controlled movement.
How Air Springs Work
An air spring works through the relationship between compressed air, pressure, and the effective area of the flexible chamber. When a load is placed on the component, the bellows compresses. Air pressure inside the chamber generates a force that supports the load.
A compressor, reservoir, valve, or control system may be connected to the air spring depending on the application. In a pneumatic suspension system, these components can work together to maintain a particular ride height or respond to changes in load.
Unlike a conventional metal spring, an air spring can have adjustable characteristics because its internal pressure can be changed. This makes pneumatic systems useful where controlled support and vibration reduction are important.
Main Types of Air Springs

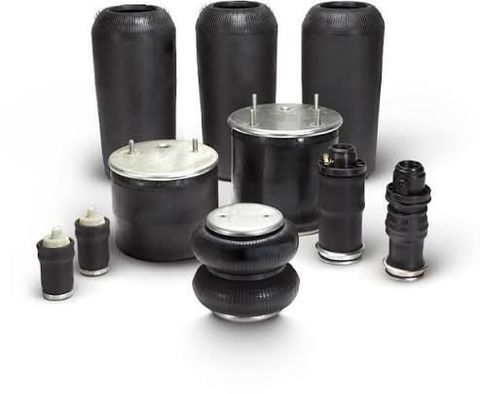

Air springs are available in several configurations. Common forms include single-convolution, multi-convolution, sleeve, and rolling-lobe designs. The appropriate configuration depends on available space, required movement, load conditions, and operating environment.
Heavy duty air springs are designed for applications involving substantial loads or demanding operating conditions. Industrial pneumatic air springs may be configured for machinery isolation, lifting, positioning, or controlled movement.
| Air Spring Type | General Characteristics | Typical Applications |
|---|---|---|
| Single-convolution | Compact flexible chamber | Machinery and suspension |
| Multi-convolution | Greater vertical movement | Industrial equipment |
| Rolling-lobe | Designed for controlled extension and compression | Suspension systems |
| Sleeve type | Flexible cylindrical design | Actuation and isolation |
| Custom configuration | Designed around application requirements | Specialized machinery |
Importance
Air springs are important because machinery and transportation systems often need to manage vibration, movement, and changing loads. Uncontrolled vibration can affect equipment operation, measurement accuracy, structural components, and working conditions.
Industrial vibration isolation systems use air springs to separate equipment from unwanted movement. This approach can be useful for machinery such as precision equipment, testing platforms, compressors, pumps, and production equipment.
Vibration Isolation and Control
Air spring vibration isolators work by creating a flexible connection between equipment and its supporting structure. The air chamber can absorb or reduce the transmission of certain vibration frequencies.
Industrial vibration control air springs may be used where mechanical movement needs to be limited or isolated. Their performance depends on factors such as air pressure, load, frequency, mounting arrangement, and the characteristics of the supported equipment.
Industrial pneumatic isolation systems may also incorporate leveling valves and control components. These systems can help maintain equipment position as loads change.
Suspension and Load Support
Air spring suspension components are widely used in systems that need controlled load support. In transportation applications, air pressure can be adjusted to accommodate variations in load and maintain a suitable operating height.
Industrial air suspension systems apply similar principles to equipment and machinery. Heavy duty pneumatic suspension can support substantial loads while allowing controlled vertical movement.
Air springs for industrial machinery may also be used in lifting and positioning applications. In these cases, the air spring acts as an actuator, converting pneumatic pressure into mechanical movement.
Air Springs as Actuators
Air spring actuators use compressed air to generate linear movement or force. They can provide movement without the rigid mechanical structure associated with some conventional actuators.
An air spring actuator may be useful when a mechanism needs compliant movement. Its operating range is determined by the air spring design, pressure range, load, stroke, and mounting arrangement.
Recent Updates
Recent developments in air spring technology have generally focused on improved materials, more precise control, longer operating ranges, and integration with automated equipment. The broader movement toward connected machinery has also influenced pneumatic suspension and isolation systems.
Integration With Automated Equipment
Modern manufacturing environments increasingly combine pneumatic components with electronic sensors and control systems. Air springs can be paired with pressure sensors, height sensors, valves, and controllers to monitor operating conditions.
Advanced industrial air suspension systems may therefore include electronic feedback rather than relying only on mechanical valves. This allows system designers to monitor pressure and position as part of a wider automation architecture.
Materials and Design Development
Manufacturers continue to investigate rubber compounds, reinforcement fabrics, sealing methods, and structural designs for different environments. Material selection can influence flexibility, durability, temperature tolerance, and resistance to environmental exposure.
High performance air springs may incorporate design changes intended for specific load ranges or movement requirements. However, performance depends on the complete system rather than the air spring alone.
Application-Specific Systems
There is also greater interest in custom air spring systems for machinery with unusual dimensions, loads, or movement requirements. Custom industrial air spring suspension systems may involve specialized mounting arrangements, pressure ranges, or control methods.
Air spring engineering solutions increasingly consider the complete mechanical system rather than treating the spring as an isolated component. This includes mounting surfaces, load distribution, pneumatic controls, operating environment, and expected movement.
Tools and Resources
Several resources can help users understand or evaluate air spring applications. Engineering drawings, load tables, pressure calculations, and installation documentation are commonly used during system planning.
Air Spring Selection Resources
Basic selection usually involves examining:
Supported load and load distribution.
Required vertical movement or stroke.
Available installation space.
Operating pressure range.
Temperature and environmental conditions.
Required vibration isolation characteristics.
Mounting configuration and alignment.
Manufacturers' technical catalogs and engineering drawings can provide dimensions, pressure ranges, load information, and mounting details for particular air spring designs.
Calculation and Design Tools
Air spring calculations may involve pressure, effective area, load, height, and volume. Spreadsheet templates can help compare different operating conditions, while pneumatic system calculators can assist with basic pressure and volume relationships.
For complex applications, engineers may also use mechanical simulation software or vibration-analysis tools. These resources can help study load movement, natural frequency, isolation behavior, and structural interaction.
Standards and Technical Documentation
Technical standards, equipment manuals, pneumatic-system guides, and industrial design references provide additional information about component selection and safe system integration. Documentation should be reviewed alongside the requirements of the specific equipment and operating environment.
FAQs
What are industrial air springs used for?
Industrial air springs are used for vibration isolation, load support, suspension, lifting, positioning, and controlled movement. Their application depends on load requirements, available space, pressure range, and operating conditions.
How do air spring suspension systems work?
Air spring suspension systems use compressed air inside flexible chambers to support a load. Pressure can be adjusted to influence support force and operating height, while valves and other components can regulate the pneumatic system.
What are heavy duty air springs?
Heavy duty air springs are designed for applications involving substantial loads or demanding operating conditions. They may be used in industrial machinery, transportation equipment, suspension systems, and vibration isolation arrangements.
What are air spring actuators?
Air spring actuators use compressed air to create mechanical force and movement. They can be used for lifting, positioning, pressing, or controlled movement where pneumatic actuation is suitable.
What are industrial vibration isolation systems?
Industrial vibration isolation systems are arrangements designed to reduce the transfer of unwanted vibration between machinery and its supporting structure. Air spring vibration isolators are one type of pneumatic component used for this purpose.
Conclusion
Air springs use compressed air to provide flexible support, controlled movement, suspension, and vibration isolation. Their applications range from transportation systems to industrial machinery, pneumatic actuators, and precision equipment. Developments in materials, sensors, electronic controls, and application-specific designs continue to expand the ways air springs can be integrated into modern equipment. Understanding load, pressure, movement, mounting, and environmental conditions is important when evaluating an air spring system.
